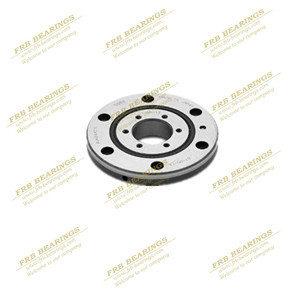

CRA8008C Crossed Roller Bearings for wheeling camera


The major dimensions are the sames as that of model RA.Since the outer ring is split as one point,this model is optimal for locations where the rigidity and accuracy of both the inner and outer rings are required. https:

CRA8008C Crossed Roller Bearings for wheeling camera

Product Model:CRA8008C
Brand Name:FRB;
Material: GCr15SiMn;GCr15;
Bore Size: 80 mm;
Outside Diameter: 96 mm;
H :8 mm;
Basic load rating(radial) C:6.37 KN
Basic load rating(radial) Co:11.3 KN
Weight:0.11 KG
Seals Type: Rubber Seal;
Gear Options: No gear;
Place of Origin: Henan China (Mainland);
Precision: P4,P5,p6;
Packing details: water-proof packing,single playwood case;

The major dimensions are the sames as that of model RA.Since the outer ring is split as one point,this model is optimal for locations where the rigidity and accuracy of both the inner and outer rings are required.

Application:
It is optimal for applications such as joints and swiveling units of industrial robots,
swiveling tables of machining centers,rotary units of manipulators,precision rotary tables,medical equipment,measuring instruments and IC manufacturing machines.
