CMT Cutting Machine Tools Co., Ltd produce the CNC water jet cutting machines for both pure water and abrasive waterjet cutting which are applied in the versatile materials cutting such as the stainless steel cutting, aluminium cutting, copper cutting, brass cutting, non ferrous metal cutting https:

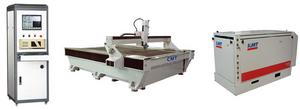

CNC Water Jet Cutting Machines can be used for cutting any profiles with accuracy and almost any material. The flexibility and reliability of the process enables it to be used in both high volume production situations and in lower volume custom, creative applications.
Main benefits of waterjet cutting are:
Fast setup-- low tangential forces often eliminate the need for clamping.
Burr-free finishing-- eliminates any need for secondary surface finishing for most applications.
No heat affected zones-- easy for the secondary cutting if required.
Eliminates the need to sharpen tools.
Ideal for quick prototype, flexible production and proven for high volume production.
Wide application and can cut almost all kinds of materials and even 200mm thick stainless steel.
To learn more about water jet cutting, please visit our website or search CMT Cutting Machine Tools Co., Ltd to contact us for more information.
Partially Machine Technical Data
Model
CMT-F1212
CMT-F1225
CMT-F1830
CMT-G2515
CMT-G3020
CMT-4020
Structure
F-Flying arm
F- Flying arm
F- Flying arm
G-Gantry
G-Gantry
G-Gantry
Journey
X
1250mm (48")
1250mm (48")
1850mm (72")
2500mm (96")
3050mm (120")
4000mm (156")
Y
1250mm (48")
2500mm (96")
3050mm (120")
1525mm (60")
2000mm (78")
2000mm (78")
Z
155mm (6")
155mm (6")
155mm (6")
200mm (8")
200mm (8")
200mm (8")
CNC
Windows XP. Japan servo motors, G-code running and PC based Windows XP
Accuracy
Control
"0.01mm
Repeatability
"0.05mm
Cutting
"0.1mm
Idle running speed
0~6m/min
0~8m/min
0~8m/min
0~10m/min
0~15m/min
0~15m/min
High pressure pump
KMT Jetline 50HP (37kw).55k psi,3 shifts
Power supply
380V/50Hz/3ph or as request, 50KVA
Different table size, high pressure pump and CNC can be customized according to the application and budget of the customers.
Other features such as dual cutting heads, drilling or tapping cutting head, submerged cutting, skip&float for uneven plate cutting and so on are available upon request
