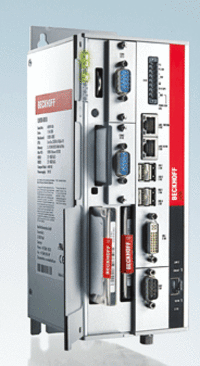

Beckhoff Announces Ultra-compact C6930 Industrial PC with RAID System


Control cabinet PC features high data security and high-performance with space-saving design https:

Industrial Buzz - In order to add a RAID option with high data security to the exceptionally compact C69xx Industrial PC line, Beckhoff has introduced the new C6930 IPC. Ideal for demanding industrial automation applications where compact devices are a must, the C6930 includes a 3-inch Beckhoff Motherboard designed for powerful Intel Core Duo or Core 2 Duo processors and offers high data security through an integrated RAID system for mirroring hard disks.

The C6930 IPC also features a wide range of PC interfaces, up to three Ethernet ports, e.g. for EtherCAT-based controllers and optional fieldbus interfaces for conventional fieldbus systems. The compact C6930 is designed for simple control cabinet installation. An easy to replace cooling fan cartridge with speed control and double ball bearing fans enable operation of the PC at temperatures up to 55 C (131 F).

The C6930 has an on-board SATA RAID controller for mirroring two hard disks. It can be used for convenient configuration of RAID applications supported by TwinCAT automation software from Beckhoff. In addition to or instead of the hard drive, a flash disk can be integrated in the form of a Compact Flash card (CF) or a solid-state disk (SSD). The result is high data security that can be enhanced further through optional UPS functionality.

The C6930 features two free plug connector panels for additional interfaces installed ex works such as RS232, sound and two additional USB ports. Optional fieldbus interfaces (e.g. for DeviceNet, PROFIBUS, CANopen or SERCOS), a third Ethernet port or a NOVRAM memory module for fail-safe storage of process data can be connected via a free Mini PCI slot.

The compact C6930 control cabinet PC is ideally suited for application as a centralized controller in an EtherCAT-based control system. It is equipped with two standard Ethernet ports (and optionally a third port), offering optimum performance for all EtherCAT control tasks.

Technical data:
- Industrial PC for space-saving control cabinet installation
- Intel Core Duo/Intel Core2 Duo processor
- 3-inch motherboard
- 512 MB DDR2RAM, expandable ex factory to 3 GB
- on-board graphic adapter, Intel GMA950, DVI-I connector
- on-board dual Ethernet adapter with 1 x 10/100BASE-T and 1 x 100/1000BASE-T connector
- on-board SATA RAID 1 controller, Intel Matrix Storage Technology
- 1 hard disk, 2-inch, 40 GB (optional: second 2-inch hard disk or SSD instead of hard disk)
- 1 serial RS232 interface, 4 USB 2.0 ports - slot for 1 Compact Flash card behind front flap
- optional: Mini PCI card with fieldbus interface, Ethernet port or NOVRAM
- optional: second serial port led out as RS232, RS422 or RS485, sound line inputs and outputs or 2 USB 2.0 ports
- operating system: Microsoft Windows XP Embedded or Windows XP Professional
- protection class: IP 20
- fan cartridge with speed control and double ball bearing fans, accessible from the front
- operating temperature range: 055 C (32131 F)
- weight of the basic configuration: 2.1 kg (4.6 lbs)
- dimensions (W x H x D): 89 x 231 x 119 mm, without mounting plate

For more information: EtherCAT and TwinCAT are registered trademarks of Beckhoff Automation GmbH. Beckhoff Automation provides advanced, open automation products based upon proven technologies so that customers can implement high performance control systems faster and at a lower overall cost than traditional PLC and motion control systems.


Beckhoffs New Automation Technology product range includes PC based control, industrial PCs, automation controllers, operator interface, I/O, servo drives and motors. With representation in more than 60 countries, Beckhoff is well positioned to provide global sales and service to its customers. Sales and service are handled directly, with no intermediaries involved to provide faster response and improved communications.

Beckhoff Automation LLC
12150 Nicollet Ave. S
Burnsville, MN 55337
Phone: 952-890-0000
Fax: 952-890-2888
